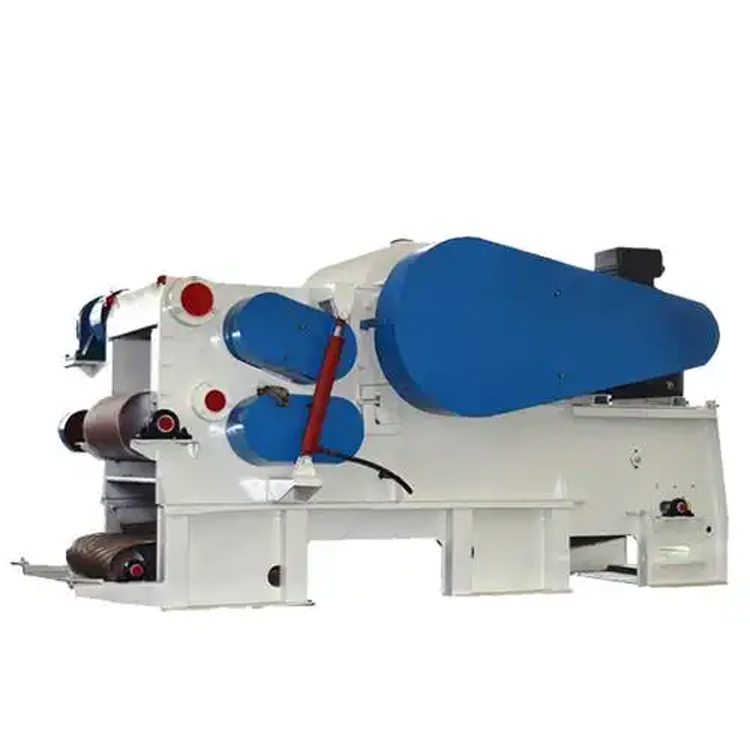

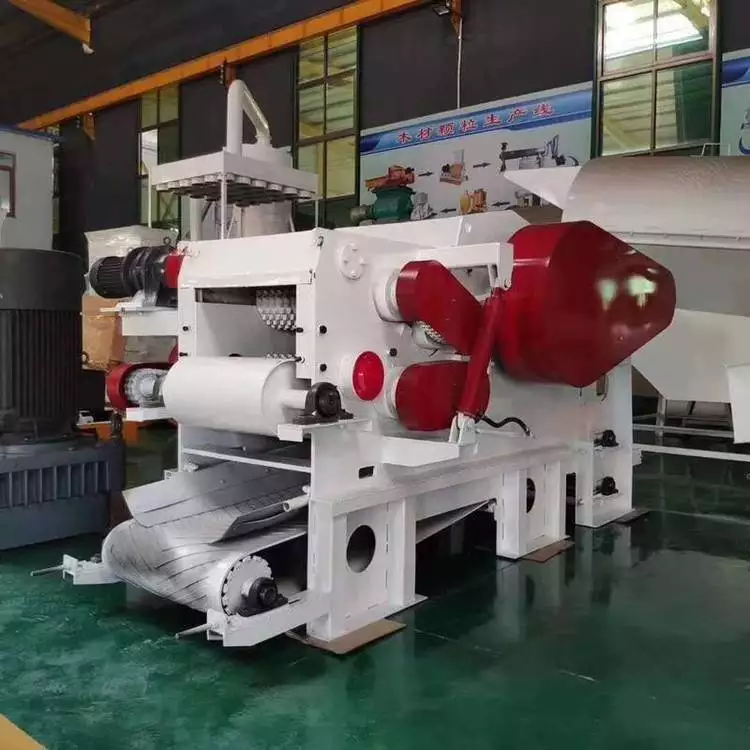

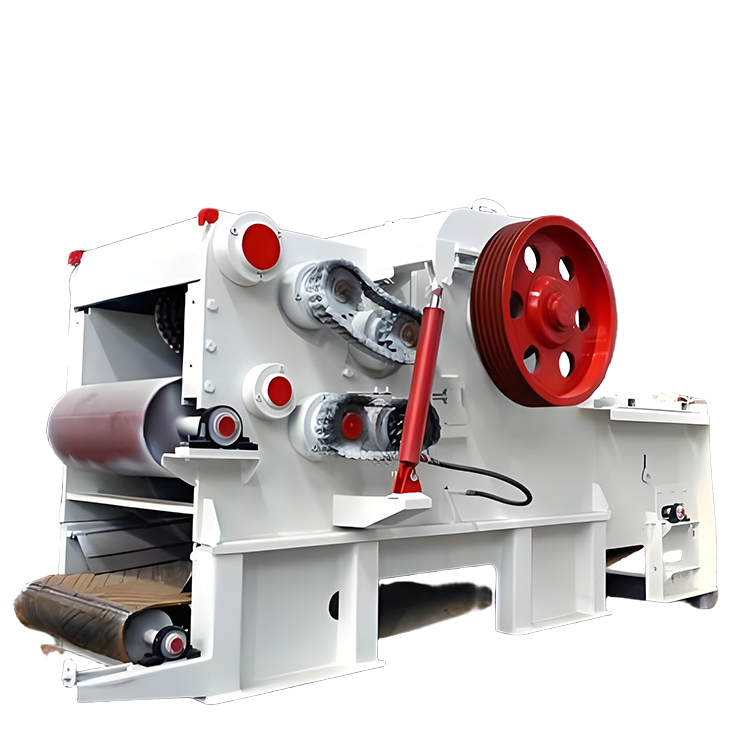

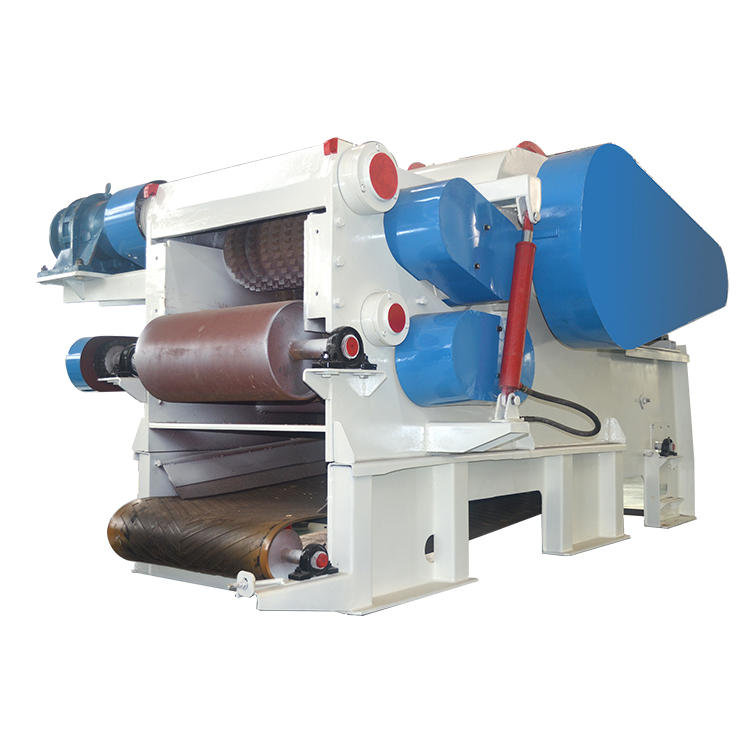

木片机 WOOD CHIP MACHINE
产品介绍PRODUCTINTRODUCTION
鼓式木片机将以下原材料:原木，树枝，木条，竹子，和不同的捆的秸秆(稻草秸秆，玉米秸秆，棉花秸秆)等其他原材料做成3-5cm木片。刀片材料是H12。本款机器广泛应用于刨花板厂、中高密度纤维板厂家县厂、生物质发电厂、木工厂以及用户的原料准备过程。该设备具有产量高，易操作，维修方便等优势。
The drum type wood chip machine makes 3-5cm wood chips from the following rawmaterials: logs, branches, wooden strips, bamboo, and different bundles of strav(straw, corn straw, cotton straw) and other raw materials. The blade material is H12This machine is widely used in particle board factories, medium and high-densityfiberb oard factories, furniture factories, biomass power plants, woodworking facto.ries, and users' raw material preparation processes. This device has advantages suchas high output,easy operation,and convenient maintenance.
产品特征PRODUCT FEATURES
1.鼓式木材削片机，设计先进，结构先进，加工优质木屑。
2.刀具2-6刀，可根据所需木屑的厚度上下调节。
3.液压系统由油泵，液压缸组成，可以启动盖板更换和维护。
4.鼓式削片机容量大，工作可靠，只有一两个人可以控制机器。
1.Drum type wood chipper, with advanced desian and structure, capable of process.ing high-quality wood chips.
2. The cutting tools can be adjusted up and down according to the required thickness of the wood chips, ranging from 2-6.
3. The hydraulic system consists of an oil pump and a hydraulic cylinder, which carinitiate the replacement and maintenance of the cover plate.
4. The drum type chip cutting machine has a large capacity and reliable operation, anconlyone or two people can control the machine.

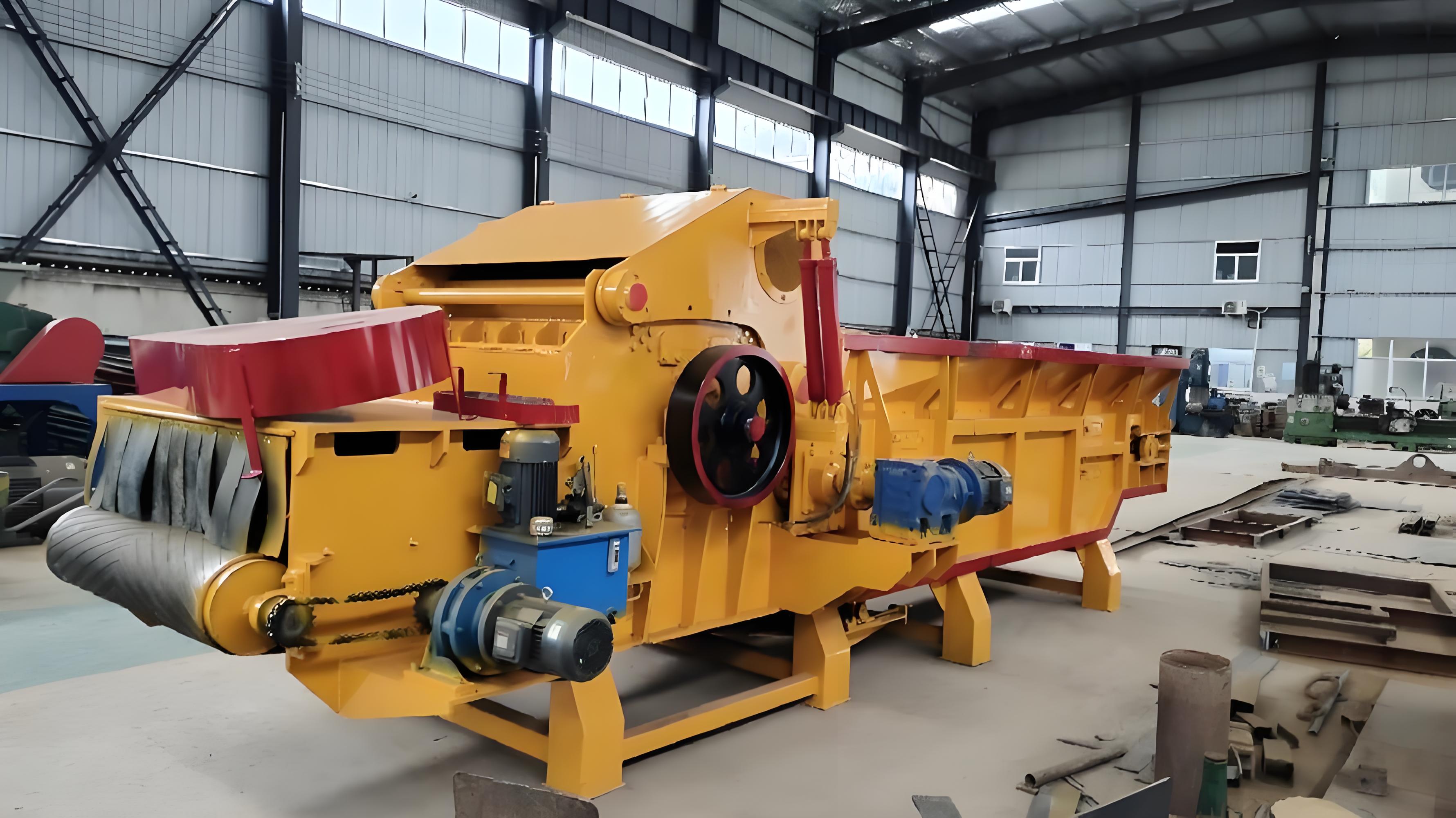

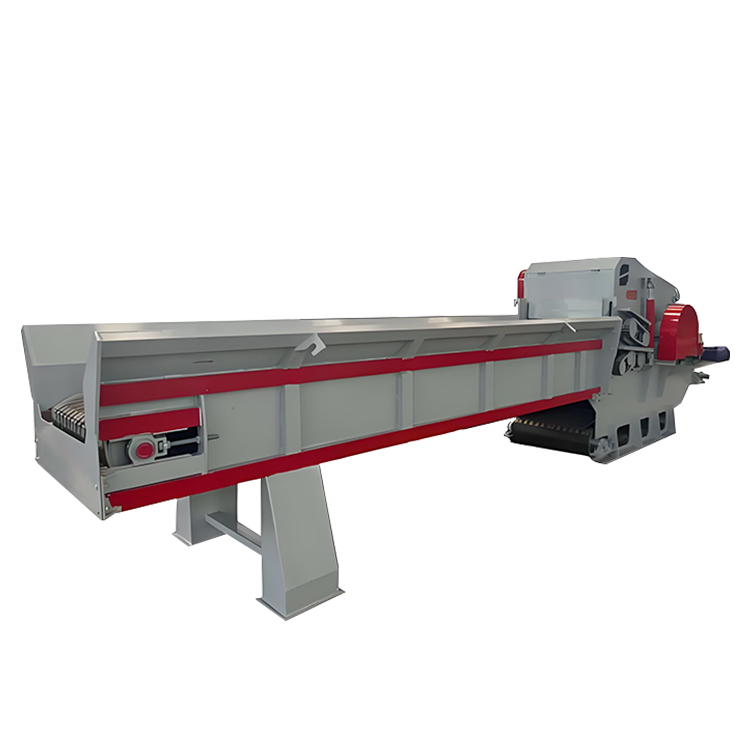

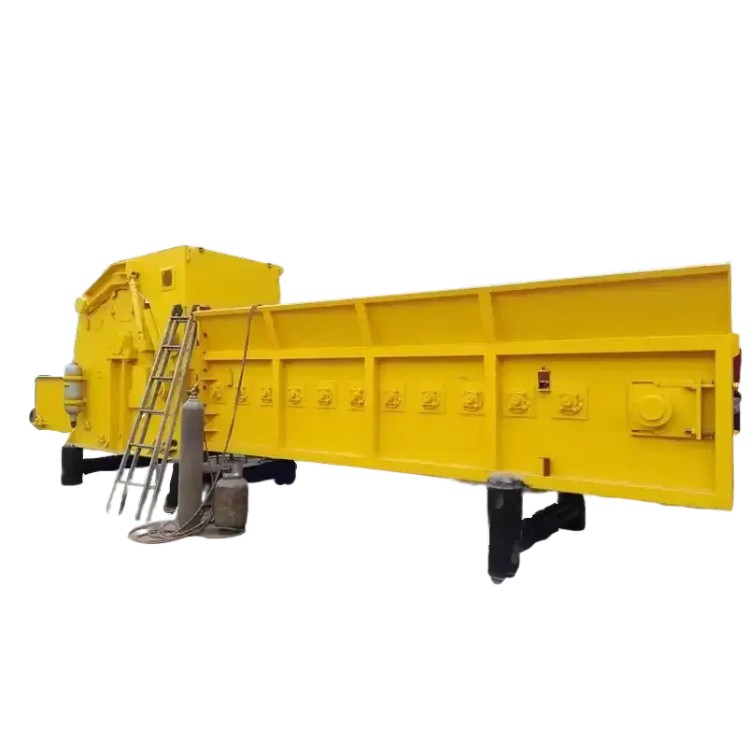

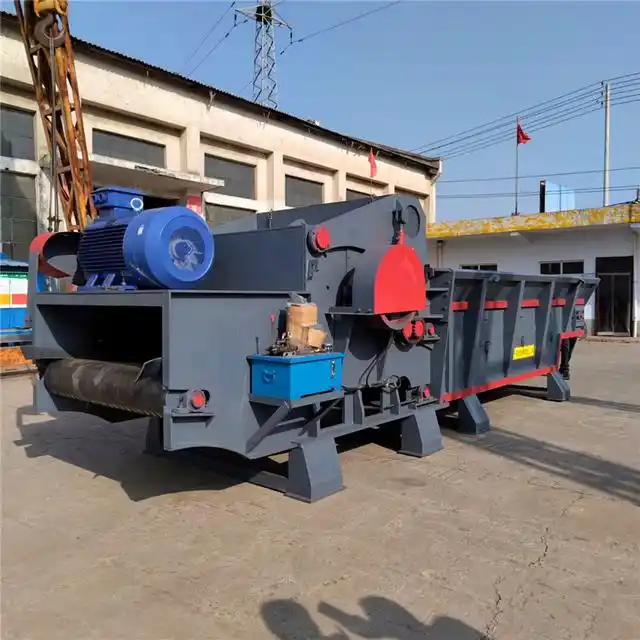

综合破碎机 INTEGRATED CRUSHER
产品介绍PRODUCTINTRODUCTION
综合破碎机是一种大型机械，专门用于破碎各种原料，使用软起动器和变频调速进料系统。本机器采用先进设备制造，确保其安全、可靠、高效地生产出高质量的木屑。广泛用于托盘、模板、废木材等含钉子的原材料。木片尺寸:2-10厘米。
A comprehensive crusher is a large-scale machinery specialized in crushing various raw materials, using a softstarter and a variable frequency speed control feeding system, This machine is manufactured using advancedeguipment to ensure its safety, reliability, and efficient production of high-quality wood chips. Widely used forpallets, templates, waste wood and other raw materials containing nails. Wood chip size: 2-10 centimeters.
产品特点 PRODUCT FEATURES
1.先进的破碎技术
采用高效压辊设计，确保破碎均匀，颗粒尺寸一致，提升产品质量，
2.高效节能
优化的能耗设计，使能耗降低15%，为客户节约大量能源成本。3.操作简便
配备智能控制系统，操作界面友好，易于上手，减少人工干预，提高生产效率。4.耐用可靠
采用高强度耐磨材料，延长设备使用寿命，减少维护频率和成本，5.环保设计
高效的除尘系统和节能技术，减少粉尘排放，符合 环保标准，助力企业绿色发展。
1.Advanced crushing technology
Ad opting highly efficient pressure roller design to ensure uniform crushing, consistent particle size, and improved product quality.
2.Efficient and energy-saving
Optimized energy consumption design reduces energy consumption by 15%, savingcustomers a significant amount of energy costs.
3. Easy to operate
Equipped with intellig ent control system, the operation interface is user-friendly and easy tostart, reducing manualintervention and improving production efficiency.
4.Durable and reliable
Ad opting high-strength wear-resistant materials to extend the service life of the equipmentand reduce the maintenance frequency and cost.
5.Environmental-friendly design
High-efficiency dust removalsystem and energy-saving technology red uces dust emissionswhich makes enterprises to be in line with environmental standards, helping them realizegreen development.

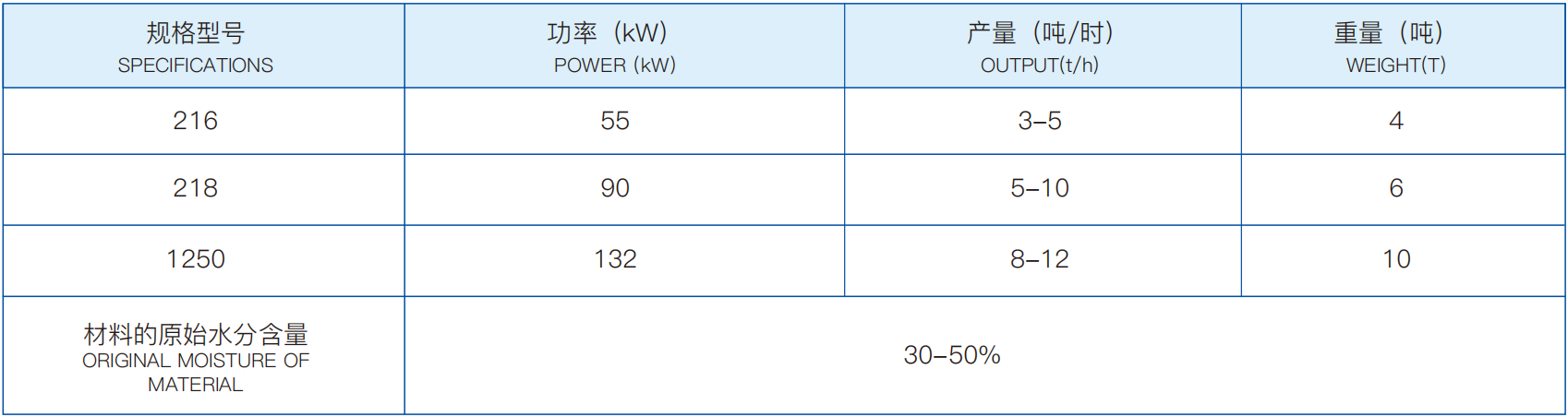

技术参数 TECHNICAL PARAMETER
产品优势 PRODUCT ADVANTAGES
高产能:多型号选择，满足不同规模生产需求，提升生产效率。
节能环保:低能耗设计，减少能源消耗，降低生产成本，符合环保要求。
质量稳定:精确的控制系统，确保破碎均匀，提高产品质量和稳定性。
维护简便:模块化设计，便于拆卸和维护，减少设备停机时间。
操作便捷:智能化控制系统，操作简单，降低人工成本。
High productivity: Multiple model options to meet production needs of different scales and improveproduction efficiency.
Energy-saving, and environment-friendly: Low energy consumption design reduces energy consumption,lowers production costs, and is in line with environmental requirements.
Stable quality: Precise control system ensures even crushing and improves product quality and stability.
Easy maintenance: Modular design facilitates disassemble and maintain procedure, reducing equipmentdowntime.
Easy to operate: The intelligent control system is easy to operate and reduces labor costs
客户案例 PRODUCT FEATURES
客户名称:河北某环保建材公司
行业:木材回收与建筑废料再利用
案例背景:
该公司主要从事废旧建筑模板、木材和农作物秸秆的回收和再利用，生产环保建材和生物质燃料。然而，传统的破碎设备在处理这些高体积和高硬度的物料时，效率低、耗能高，且设备故障频繁，增加了生产成本。为提升生产效率并减少停机时间，该公司选择了金万泓机械的高效破碎机设备。
Case background:
The company mainly engages in the recycling and reuse of waste building templates, wood, and crop strawproducing environmentally friendly building materials and biomass fuels. However,traditional crushing equip.ment has low efficiency, high energy consumption, and frequent equipment failures when processing these highvolume and high hardness materials, which increases production costs. To improve production efficiency and reduce downtime, the company has chosen the high-efficiency crusher equipment from linwanhong Machinery
解决方案:
金万泓机械为该公司提供了一台大功率破碎机，具备处理木材、建筑模板和秸秆等多种物料的能力。该设备采用耐磨破碎刀片和强力破碎技术，能够快速处理大块物料，并将其破碎至均匀的尺寸，适用于后续的加工流程。设备的智能化控制系统能够根据不同物料的硬度和体积，自动调节破碎力度，确保设备长期稳定运行。
Solution:
jin Wanhong Machinery provided the company with a high-powelcrusher capable of processing various materials such as woodconstruction templates, and straw. This equipment adopts wear-re.sistant crushing blades and strong crushing technology which canquickly process large pieces ofmaterials and crush them to uniformsizes,suitable for subsequent processing flows. The intelligentcontrol system ofthe equipment can automatically adjust the crush.ing force according to the hardness and volume of different materials, ensuring long-term stable operation of the equipment.
破碎效率提升:
破碎机投入使用后，木材、建筑模板和秸秆的破碎效率提升了40%，大大缩短了加工时间，并提高了生产线的产能。
After the crusher was put into use, the crushing efficiency ofwood, buildingtemplates, and straw increased by 40%, greatly reducing processing timeand increasing production line capacity.
节能降耗:
燃烧生物质颗粒不仅降低了燃料成本，还减少了废气排放，达到当地环保标准的要求，进一步提升了企业的绿色环保形象。
Burning biomass pellets not only reduces fuel costs,but also reducesexhaust emissions,meets local emironmental standards,and furthelenhances the green and environmentally friendlyimage of the enterprise.
环保效益:
破碎后的物料更易于再利用，尤其是建筑废料和秸秆，可直接用于生产生物质燃料和环保建材，符合企业的可持续发展目标。
Crushed materials are easier to reuse, especially construction waste andstraw, which can be directly used to produce biomass fuels and environ.mentally friendly building materials, in line with the company's sustainabledevelopment goals.
客户反馈:
河北环保建材公司对金万泓机械的破碎机非常满意，设备不仅大大提升了生产效率，还降低了能耗和维护成本。破碎后的物料尺寸均匀，有助于提高再利用效率，满足了生产环保建材和生物质燃料的需求。公司表示，该设备性能稳定，将在后续生产扩展中继续采购金万泓的破碎设备。
Customerfeedback:
Hebei Environmental Protection Building Materials Company is verysatisfied with the crusher of jinwanhong Machinery. The equipmentnot only greatly improves production efficiency, but also reducesenergy consumption and maintenance costs. The uniform size of the crushed material helps to improve the efficiency of reuse andmeets the needs of producing emironmentally friendly building materials and biomass fuels. The company stated that the equipment has stable performance and will continue to purchase jinWanhong's crushing equipment for future production expansion.
售后服务承诺AFTER SALES SERVICE COMMITMENT
1、本公司提供的设备保证是全新、技术先进、运行可靠的，并能满足双方签订的设备合同及技术协议的要求。
2、本公司分批提供满足设计、施工、运行和维护所需的图纸、资料和技术文件。3、本公司售后人员专职负责设备的现场服务工作，将免费指导需方按照技术要求进行设备的按照、调试和试运行，并负责解决在上述工程中出现的制作和性能等相关问题。并保证当需方提出任何技术疑问时，在12小时内给予明确答复，48小时内到达供货现场。4、设备投运一年内，本公司保证各项技术指标满足规定要求;在设备投运一年内，在正常使用条件下发生质量问题，本公司无偿提供维修和售后服务。
1.The equipment provided by our company is guaranteed to be brand new, technologicallyadvanced, and reliable in operation, and can meet the requirements of the equipment contract andtechnical agreement signed by both parties.
2. Our company provides drawings, materials, and technical documents in batches to meet therequirements of design, construction, operation, and maintenance.
3. Our company's after-sales personnel are dedicated to on-site service of equipment, providingfree guidance to the demand side on equipment compliance, debugging, and trial operationaccording to technical requirements. They are also responsible for resolving production andperformance related issues that arise in the aforementioned projects. And guarantee to provide aclear response within 1 2 hours and arrive at the supply site within 48 hours when the demand sideraises any technical questions.
4. Within one year of equipment operation, our company guarantees that all technical indicatorsmeet the specifed requirements, Within one year of equipment operation, if quality problems occurunder normal usage conditions,our company wil provide free maintenance and after-salesserice.
