生物质颗粒锅炉BIOMASS PELLET BOILER
CWNS系列生物质颗粒锅炉是我公司根据国家节能减排紧迫形势而推出的高效环保节能型常压热水设备，有以下优势:运行稳定可靠:配有自动点火装置，点火速度快、效率高、寿命长;配置自动进料装置，运行稳定，使用更安全;配置先进的集成式微电脑控制系统，可实现自动进料、点火、鼓风机引风，循环泵工作的程序参数设置，大小火可直接进行调节;配置有高效报警安全防护装置，以确保锅炉安全运行;燃烧系统配置了旋转的二次补氧配风技术，燃烧安全，燃烧达到无烟;排放无可见烟尘，测试达到行业排放标准，运行费用低，仅为燃油锅炉的三分之一，电锅炉的五分之一:锅炉采用整体保温,保温效果好，热效率高，外观精致，美观。
The CWNS series biomass pellet boiler is an efficient, environmentally friendly, and energy-saving atmospherichot water equipment launched by our company in response to the urgent situation of national energy conserva.tion and emission reduction. it has the following advantages:Stable and reliable operation: equipped with autom atic ignition device, fast ignition speed, high efficiency, andlong service life; Configure automatic feeding device for stable operation and safer use; Equipped with anadvanced intearated microcomouter control svstem, it can achieve automatic feeding, icnition, blower induceddraft, and program parameter settings for circulating pump operation. The size of the fire can be directly adjust.ed; Eguipped with eficient alam and safety protection devices to ensure the safe operation of the boiler: Thecombustion system is equipped with a rotating secondary oxygen and air supply technology, ensuring safecombustion and achieving smoke-free combustion; No visible smoke and dust emis sions, tested to meet indus.try emission standards, low operating costs, only one-third of oil fired boilers and one-fifth of electric boilers.the boiler adoots overall insulation, with good insulation effect, high thermal efficiency, exquis ite appearanceand beautiful appearance.
产品特点PRODUCT FEATURES
1、生物质颗粒为燃料，不燃煤、无烟尘、干净、环保;二氧化硫、氮氧化合物、烟尘等排放均达到国家标准。
2、安装了自动上料装置并配有超大料仓，不用人工加料，不怕缺料灭火，一次加料可维持8-24小时，炉体上还安装了缺料提醒装置，不必担心忘记加料。
3、双热道设计，炊事取暖双使用，既可取暖又可做饭，出烟口采用强制排烟设计，便于各种方位烟囱的安装。
4、柔性预紧纹龙设计，大大降低绞龙的卡料现象，使燃料的适用范围更广。
5、出水口前后各一，方便安装使用。
6、使用成本比燃气壁挂炉便宜一半，供热量达到25KW以上，而且做饭火力强:供暖、烧水、做饭均不误，热效率超过90%，一炉多用，经济实惠。
7、使用生物质燃料运行成本低，燃烧成本降到与普通煤等同，是电锅炉及燃油、燃气锅炉的1/4、1/3、1/2。
1. Biomass pellets are used as fuel, which does not burn coal, has no smoke or dust, is clean, and environmentally friendly; The emissions of sulfur dioxide, nitrogen oxides, and particulate matter all meet national standards
2. Equipped with an automatic feeding device and a super large material warehouse, there is no need foimanual feeding, and there is no fear of material shortage and fire extinguishing. One feeding can last for 8-24hours. The fumace body is also equipped with a material shortage reminder device, so there is no need to woryab out forgetting to add materials.
3. Double hot aisle desian, dual use for cooking and heating, both for heating and cooking. The smoke outlead opts a forced exhaust design, which facilitates the installation of chimneys in various directions.
4. The flexible pre tensioning dragon design greatly reduces the jamming phenomenon of the winch, making thefuel more widely applicable.
5. One in front and one behind the water outlet for easy installation and use.
6. The usage cost is half cheaper than gas wall mounted boilers, with a heating capacity of over 25Kw, andstrong cooking power: heating, boiling water, and cooking are all efficient, with a thermal efficiency of over 90%One boiler can be used for multiple purposes and is economical.
7. The operating cost of using biomass fuel is low, and the combustion cost is reduced to the same level asordinary coal, which is 1/4, 1/3, and 1/2 of that of electric boilers, oil fired boilers, and gas fired boilers.

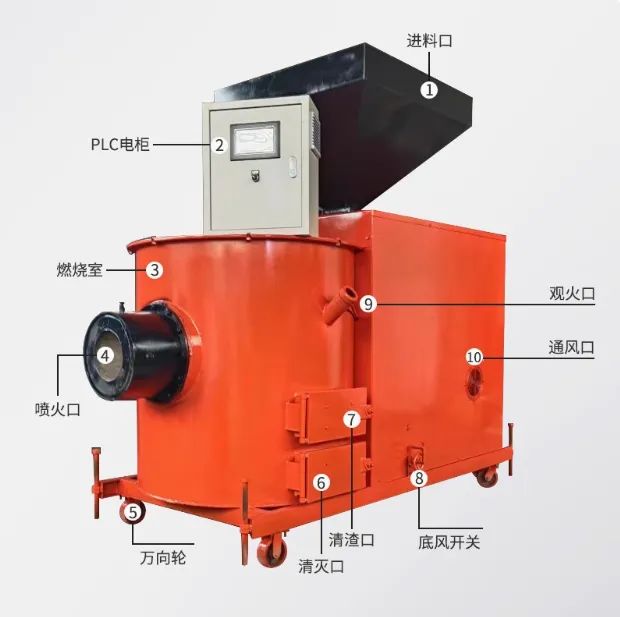

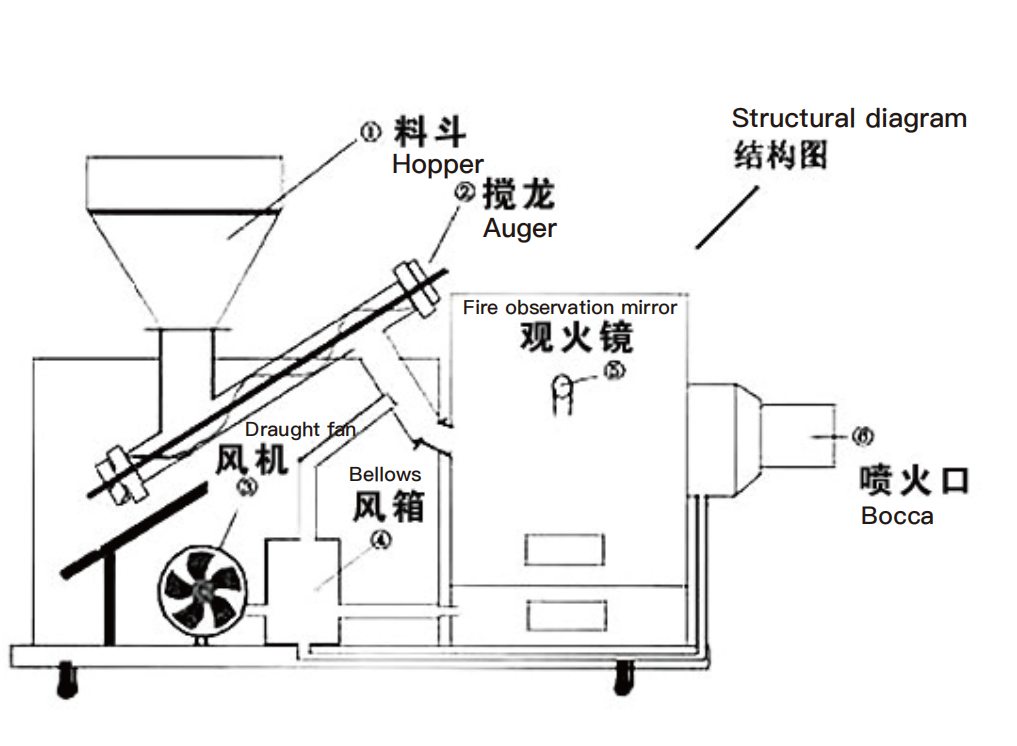

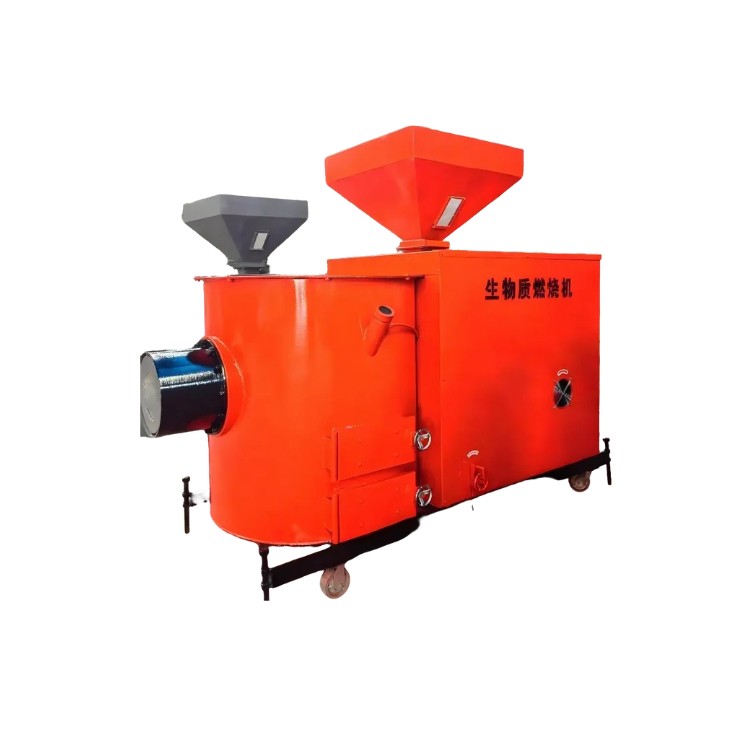

生物质燃烧机BIOMASS BURNER
是一种以环保生物质颗粒为燃料的设备，燃烧时无可见烟尘。
广泛应用于锅炉、压铸机、工业炉窑、焚烧炉、熔炼炉、厨房设备、干燥设备、食品烘干设备、熨烫设备、烤漆设备、公路筑路机械设备、工业退火炉、沥青加热设备等各种热能行业。
It is a device that uses environmentally friendly biomass pellets as fuel, and there is no visible smoke or dustduring combustion.
Widely used in various thermal energy industries such as boilers, die-casting machines, industrial furnacesincinerators, melting fumaces, kitchen equipment, drying equipment, food drying equipment, ironing equip.ment, paint baking equipment, road construction machinery equipment, industrial annealing furnaces, asphaltheating equipment, etc.
产品特点 PRODUCT FEATURES
1、燃烧完效率高:沸腾式半气化燃烧加切线旋流式配风设计，使得燃料及燃烧完，燃烧效率可达95%以上。
2、燃烧完、稳定:设备在微压状态下运行不发生回火和脱火现象。
3、热负荷 调节范围宽:燃烧机热负荷可在额定负荷的30%-130%范围内快速调节，起动块反应灵敏。
4、污染小环保效益明显:以可再生生物质能源为燃料，实现了能源的可持续利用。采用低温分段燃烧技术、烟气中氮的氧化物、二氧化硫、灰尘等排放低，是煤炉等的替代佳品。
5、操作简单、维护方便:自动给料，自动排渣，自动点火自动调温，自动24小时无人值守。
6、投资省，运行费用低:宽带变频燃烧，更加贴合用户的使用要求，用户可根据使用需求，改变燃烧方式与控制。
1. High comb ustion efficiency: Boiling semi gasification combustion combined with tangentialswirl air distribu-tion design enables fuel and combustion efficiency to reach over 95%.
2. Combustion complete and stable: The equipment operates under slight pressure without experiencingtempering or misfiring.
3. Wide range of thermal load adjustment: The thermal load of the combustion engine can be quickly adjustedwithin the range of 30% -130% ofthe rated load, and the starting block responds sensitively.
4. The pollution is small and the environmental benefits are obvious: using renewable biomass energy as fuelhas achieved sustainable utilization of energy, The use of low-temperature seg mented combustion technologyresults in low emissions of nitrogen oxides, sulfur dioxide, dust, and other pollutants in the flue gas, making itan excellent substitute for coal stoves and other equipment.
5. Easy to operate and maintain: automatic feeding, automatic slag discharge, automatic ignition, automatictemperature control,and 24-hour unmanned operation.
6. Low investment and operating costs: Broadband variable freguency combustion is more suitable for usersusaae reoulrements, and users can chande the combustion mode and control accordina to their needs
客户案例 PRODUCT FEATURES
客户名称:福建某农业合作社
行业:农业
案例背景:
该农业合作社主要生产有机肥料和农作物，由于生产过程中需要大量的热能以处理有机物，他们此前使用的燃烧设备效率低，燃料成本高，且环境污染问题严重。为了降低能耗，减少环境污染，同时提高热能利用率，该合作社决定引入金万泓机械的生物质颗粒燃烧机。
Case background:
The agricultural cooperative mainly producesorganic fertilizers and crops. Due to the largeamount of heat required to process organic matteiduring the production process,the combustionequipment theypreviously used had low efficiencyhigh fuel costs,and serious environmental pollu.tion problems.In order to reduce energy consump.tion,minimize environmental pollution,andimprove thermal energy utilization efficiency,thecooperative has decided to introduce the biomasspellet combustion machine fromjinwanhongMachinery.
解决方案 SOLUTION
金万泓机械为其提供了一台高效节能的生物质颗粒燃烧机，专门设计用于燃烧生物质颗粒，作为可再生能源。该设备采用先进的燃烧技术，确保燃料燃烧充分，热效率高，同时减少了有害气体的排放。设备可与现有的热能系统集成，满足多种生产需求。
jinwanhong Machinery provided it with an efficient and energy-saving Biomass pelletburner biomass pellets as a renewable energy source. This device adopts advancedcombustion technology to ensure sufficient fuel combustion, high thermal efficiencyand reduce the emission of harmful gases. The equipment can be integrated withexisting thermal energy systems to meet various production needs
实施效果IMPLEMENTATION EFFECT
热效率提升:
生物质颗粒燃烧机的使用使有机肥料生产的热能利用率提高了40%，极大提升了热能转化
效率。
The use of biomass pellet burners has increased the thermal energy utilization rate oforganic fertilizer production by 40%, greatly improving the efficiency of thermal energyconversion.
节能环保:
燃烧生物质颗粒不仅降低了燃料成本，还减少了废气排放，达到当地环保标准的要求进一步提升了企业的绿色环保形象。
Burning biomass pellets not only reduces fuel costs, but also reduces exhaust emissionsmeets localenvironmental standards, and furtherenhances the green and environmentally
friendlyimage of the enterprise.
成本降低:
设备的高效率燃烧减少了生物质颗粒的消耗，运营成本降低了15%，帮助企业获得了更高的利润空间。
The high efficiency combustion of the equipment reduces the consumption of biomasspellets, and the operating cost is reduced by 15%, which helps the enterprise gain a higherprofit margin.
客户反馈 CUSTOMER FEEDBACK
农业合作社表示，金万泓机械的生物质颗粒燃烧机操作简便，燃烧充分且稳定，环保性能强。设备的使用不仅大幅提升了生产效率，还降低了能源消耗，帮助企业减少了对传统化石燃料的依赖。
The agricultural cooperative stated that the Biomass pellet burner of jinwanhong Machinery is easy to operatewith sufficient and stable combustion, and strong environmental performance. The use of eg uipment not onlysignificantly improves production eficiency, but also reduces energy consumption, helping companies reducetheir dependence on traditional fossil fuels.
售后服务 AFTER SALES SERVICE COMMITMENT
1、本公司提供的设备保证是全新、技术先进、运行可靠的，并能满足双方签订的设备合同及技术协议的要求。
2、本公司分批提供满足设计、施工、运行和维护所需的图纸、资料和技术文件。
3、本公司售后人员专职负责设备的现场服务工作，将免费指导需方按照技术要求进行设备的按照、调试和试运行，并负责解决在上述工程中出现的制作和性能等相关问题。并保证当需方提出任何技术疑问时，在12小时内给予明确答复，48小时内到达供货现场。
4、设备投运一年内，本公司保证各项技术指标满足规定要求;在设备投运一年内，在正常使用条件下发生质量问题，本公司无偿提供维修和售后服务。
1. The equipment provided by our company is guaranteed to be brand new, technologicallyadvanced, and reliable in operation, and can meet the requirements of the equipment contract andtechnical agreement signed by both parties.
2. Our company provides drawings, materials, and technical documents in batches to meet thereguirements of design, construction, operation, and maintenance.
3. Our company's after-sales personnel are dedicated to on-site service of equipment, providingfree guidance to the demand side on equipment compliance, debugging, and trial operationaccording to technical requirements. They are also responsible for resolving production andperformance related issues that arise in the aforementioned projects. And guarantee to provide aclear response within 1 2 hours and arrive at the supply site within 48 hours when the demand sideraises any technical questions.
4. Within one year of equipment operation, our company guarantees that all technical indicatorsmeet the specihed reguirements; Within one year of equipment operation, if quality problems occurunder normal usage conditions, our company will provide free maintenance and after-salesservice.
