烘干机节能减耗的技术实践路径

2025-09-08

引言：

烘干环节往往是生产链中的“能耗大户”，尤其对于高湿度物料处理，能源成本可能占据运营成本的很大比例。传统烘干设备存在热损失大、能源利用效率低等问题，不仅增加企业负担，也与绿色生产的理念相悖。从设备结构优化、工艺细节改进到能源循环利用，全方位拆解烘干机节能减耗的实用技术路径，通过真实案例展示如何在保证烘干效果的前提下，实现能耗与成本的双重降低。

The drying process is often a major energy consumer in the production chain, especially for handling high humidity materials, where energy costs may account for a significant proportion of operating costs. Traditional drying equipment has problems such as high heat loss and low energy utilization efficiency, which not only increases the burden on enterprises but also contradicts the concept of green production. From optimizing equipment structure and improving process details to energy recycling, we comprehensively dismantle the practical technical path of energy saving and consumption reduction for drying machines. Through real cases, we demonstrate how to achieve dual reduction of energy consumption and cost while ensuring the drying effect.

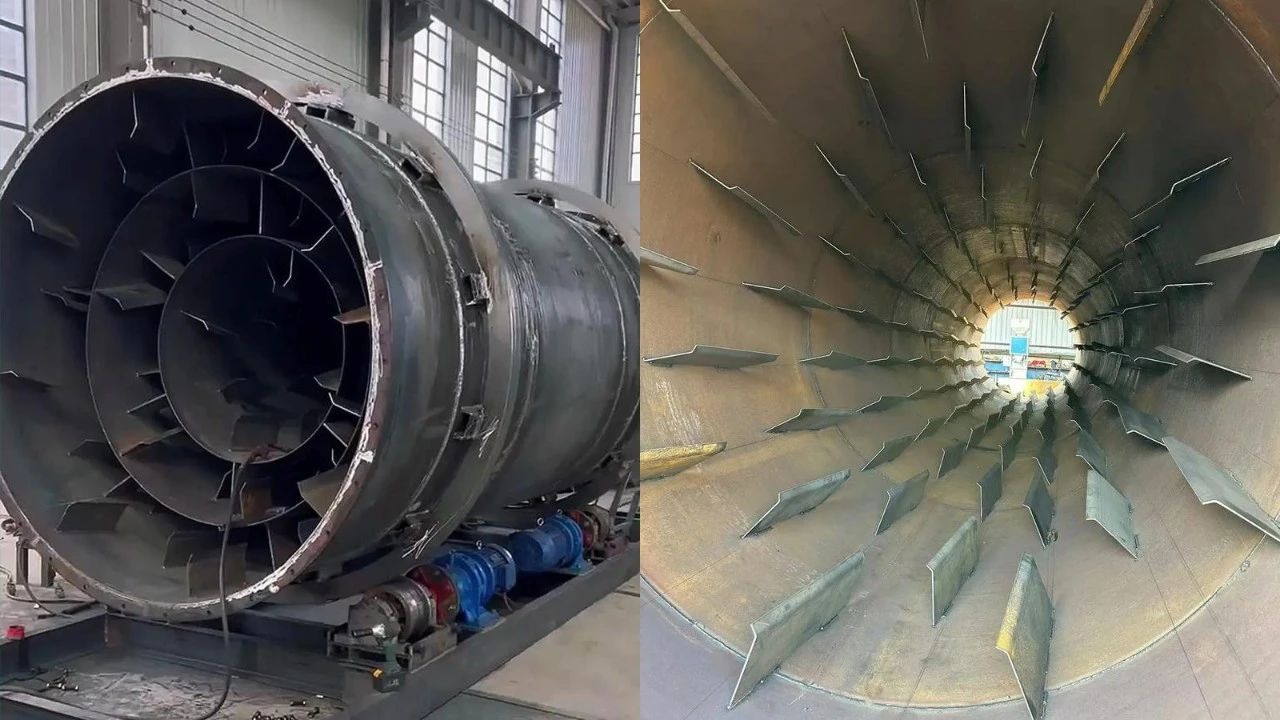

		设备的先天结构决定了节能潜力。三回程烘干机通过多层套筒设计，让热风在筒内多次循环，与物料充分接触，减少热量直接排放造成的浪费。相比传统单筒设备，这种“保温式” 结构能显著提升热利用率。某企业将原有单筒烘干机升级为三回程设备后，在处理量不变的情况下，能源消耗明显降低。此外，优化抄板角度和排布方式，能让物料翻动更均匀，避免局部过热导致的能源浪费，这种 “细节优化” 带来的节能效果往往被忽视却十分关键。 The inherent structure of the equipment determines its energy-saving potential. The three return dryer is designed with multiple layers of sleeves, allowing hot air to circulate multiple times inside the cylinder and fully contact with the material, reducing waste caused by direct heat discharge. Compared to traditional single tube equipment, this "insulated" structure can significantly improve heat utilization efficiency. After upgrading the original single drum dryer to a three pass equipment, a certain enterprise significantly reduced energy consumption while maintaining the same processing capacity. In addition, optimizing the angle and arrangement of the copied board can make the material flip more evenly and avoid energy waste caused by local overheating. The energy-saving effect brought by this "detail optimization" is often overlooked but crucial.

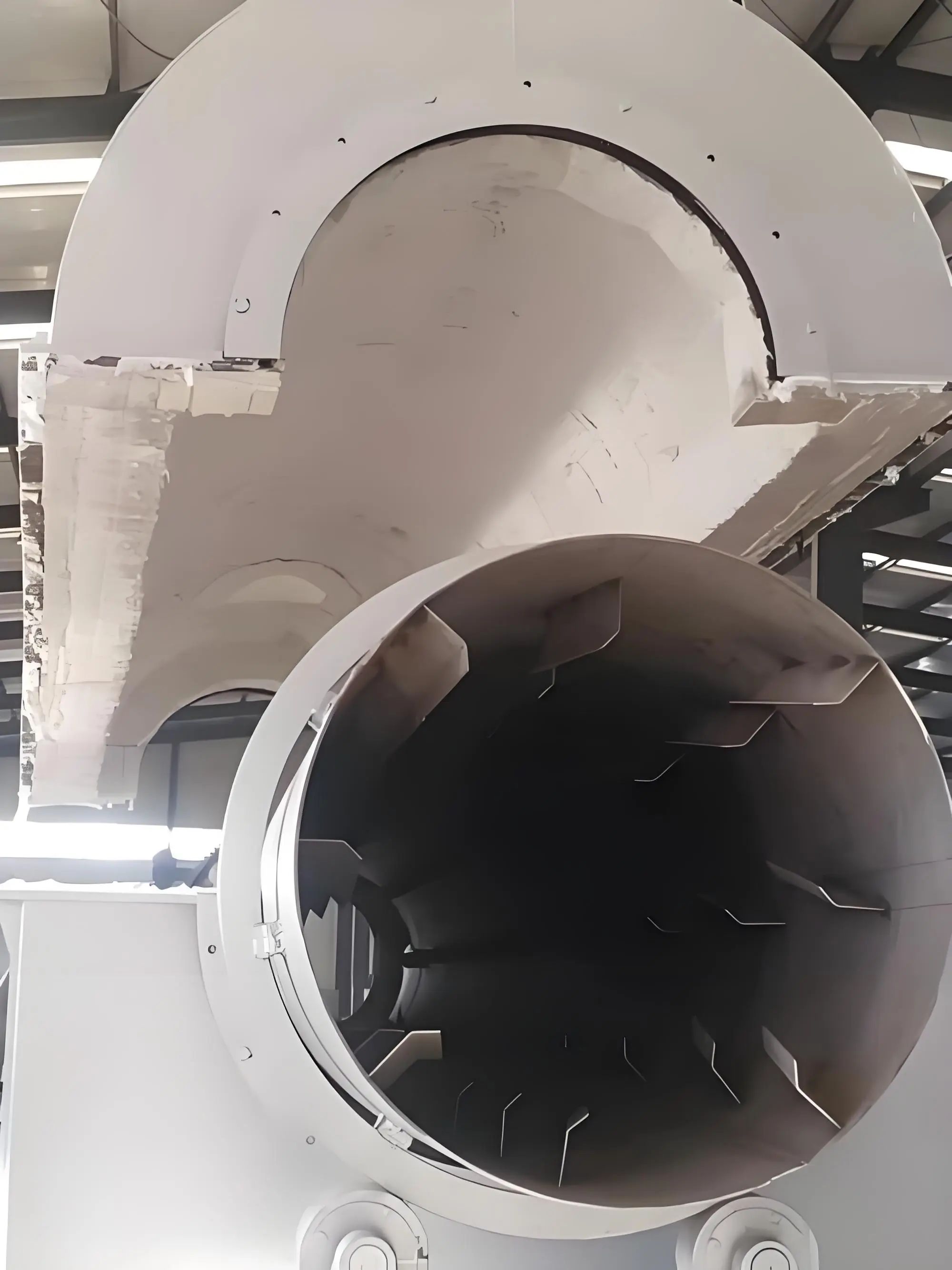

做好保温与密封是节能的“隐形功臣”。设备运行时，筒体表面的温度流失和冷空气渗入会直接增加能耗。通过在筒体外部包裹高性能保温材料，可减少表面散热；在进出料口采用迷宫式密封设计，能有效阻挡冷空气进入。某食品加工厂为旧烘干机加装保温层和新型密封件后，环境温度降低的同时，烘干时间也有所缩短。此外，合理控制进出料速度，避免设备 “空转” 或 “过载”，也是工艺层面降低能耗的简单有效方法。

Proper insulation and sealing are the 'invisible heroes' of energy conservation. When the equipment is running, the temperature loss on the surface of the cylinder and the infiltration of cold air will directly increase energy consumption. By wrapping high-performance insulation material around the outside of the cylinder, surface heat dissipation can be reduced; Adopting a labyrinth seal design at the inlet and outlet can effectively block the entry of cold air. After adding insulation layer and new sealing components to the old dryer in a certain food processing factory, the ambient temperature decreased while the drying time was also shortened. In addition, controlling the feeding and discharging speed reasonably to avoid equipment idling or overloading is also a simple and effective method to reduce energy consumption at the process level.

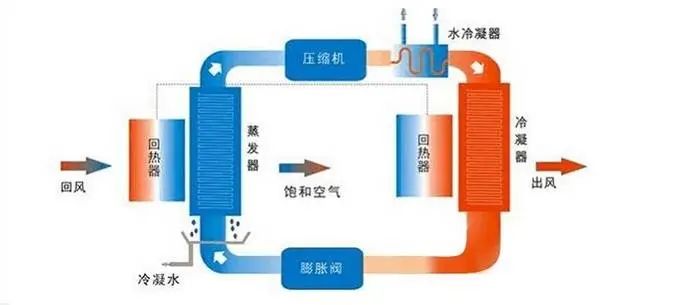

能源的循环利用是节能技术的核心突破方向。热泵技术通过热量回收循环，将原本排放的余热重新利用，大幅降低对外界能源的依赖，尤其适合低温烘干场景。某农产品加工企业采用热泵烘干机处理果蔬，相比传统电加热设备，能源消耗显著减少。在工业领域，将烘干过程中产生的废气余热通过换热器加热新风，形成能源闭环。某化工园区通过这种余热回收模式，实现了多家企业的能源共享，不仅降低了整体能耗，还减少了碳排放，实现了经济与环境效益的双赢。

The recycling of energy is the core breakthrough direction of energy-saving technology. Heat pump technology utilizes heat recovery and recycling to reuse the waste heat originally emitted, significantly reducing dependence on external energy, especially suitable for low-temperature drying scenarios. A certain agricultural product processing enterprise uses a heat pump dryer to process fruits and vegetables, which significantly reduces energy consumption compared to traditional electric heating equipment. In the industrial field, the waste heat generated during the drying process is used to heat the fresh air through a heat exchanger, forming an energy loop. A certain chemical industrial park has achieved energy sharing among multiple enterprises through this waste heat recovery mode, which not only reduces overall energy consumption but also reduces carbon emissions, achieving a win-win situation for economic and environmental benefits.
