固废变资源:烘干机如何重塑工业环保格局

2025-08-25




        引言:

“双碳” 目标驱动下,工业固废的资源化利用成为全球关注焦点。从污水处理厂的污泥到化工企业的废渣,传统填埋或焚烧方式不仅占用土地,还可能造成二次污染。金万泓烘干机通过低温烘干余热回收技术,将这些固废转化为可再利用的资源,实现 “减量化、无害化、资源化” 的三重目标。本文将解析这项技术如何为各行业提供绿色解决方案。

Driven by the "dual carbon" goal, the resource utilization of industrial solid waste has become a global focus of attention. From sludge from sewage treatment plants to waste residue from chemical enterprises, traditional landfill or incineration methods not only occupy land but may also cause secondary pollution. Jinwanhong dryer uses low-temperature drying and waste heat recovery technology to convert these solid wastes into reusable resources, achieving the triple goals of "reduction, harmlessness, and resource utilization". This article will analyze how this technology provides green solutions for various industries.








以污泥为例,含水率 80% 的湿污泥直接填埋会占用大量土地,且渗滤液可能污染地下水。通过烘干将含水率降至 40% 以下后,污泥可作为生物质燃料建材原料,实现资源再利用。某污水处理厂采用金万泓烘干机后,每年减少污泥填埋量 3 万吨,同时通过燃烧干污泥发电,满足厂区 15% 的用电需求。
对于化工废渣,烘干不仅可降低运输成本,还能提取其中的有价金属。例如,某冶炼厂将废渣烘干后,通过磁选        工艺回收金属,使每吨废渣的经济价值提升数千元。这种“固废 - 资源” 的转化模式,正在重塑工业环保产业链

Taking sludge as an example, burying wet sludge with a moisture content of 80% directly will occupy a large amount of land, and the leachate may contaminate groundwater. After reducing the moisture content to below 40% through drying, sludge can be used as biomass fuel or building materials to achieve resource reuse. After adopting the Jinwanhong dryer, a certain sewage treatment plant reduces the amount of sludge landfill by 30000 tons per year. At the same time, by burning dry sludge for power generation, it meets 15% of the plant's electricity demand.
For chemical waste residue, drying can not only reduce transportation costs, but also extract valuable metals from it. For example, a certain smelting plant dries copper containing waste residue and recovers metallic copper through magnetic separation technology, increasing the economic value of each ton of waste residue by thousands of yuan. This "solid waste resource" transformation model is reshaping the industrial environmental protection industry chain.






传统高温烘干能耗高且易产生有害气体,金万泓采用热泵辅助的低温烘干技术,将烘干温度控制在 60-80℃,在保证脱水效率的同时减少能耗。例如,处理印染污泥时,系统通过回收废气中的余热预热新风,使热利用率提升至 85% 以上,较传统设备节能 30%。

Traditional high-temperature drying has high energy consumption and is prone to producing harmful gases. Jin Wanhong adopts a low-temperature drying technology assisted by a heat pump to control the drying temperature at 60-80 ℃, reducing energy consumption while ensuring dehydration efficiency. For example, when processing printing and dyeing sludge, the system preheats fresh air by recovering waste heat from exhaust gas, increasing the heat utilization rate to over 85%, which is 30% more energy-efficient than traditional equipment.

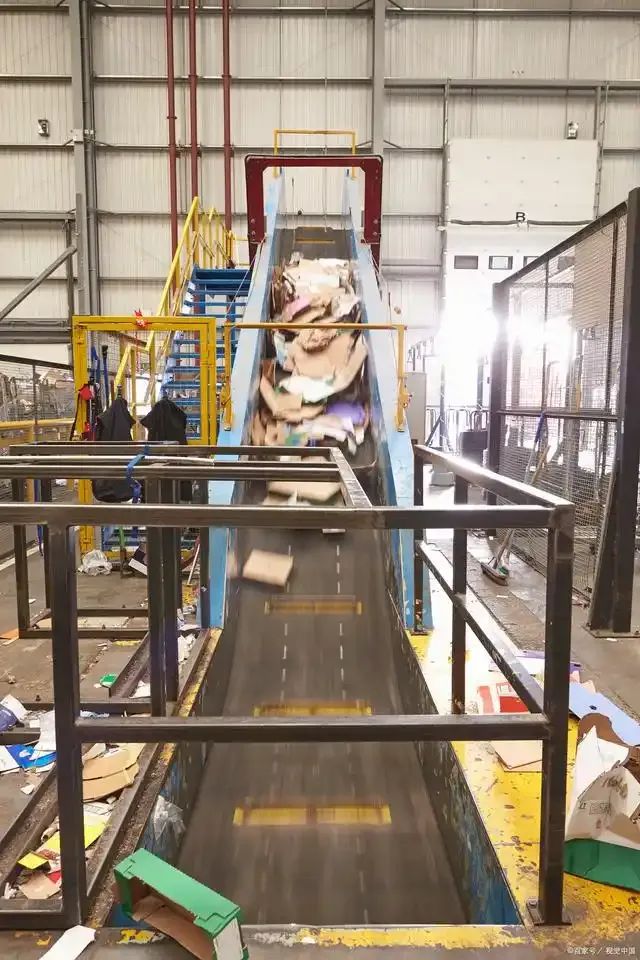

为提升固废的资源化价值,金万泓在烘干系统中集成智能分选模块。例如,处理建筑废料时,烘干后的物料通过磁选、筛分等工序,可分离出金属、骨料和粉料,分别用于再生钢铁、混凝土和建材生产。某建筑垃圾处理厂采用该技术后,资源回收率从 50% 提升至 80%,年处理能力突破 10 万吨。
对于有机固废,如食品加工残渣,烘干后可通过生物发酵制成有机肥。某食品企业将果蔬边角料烘干后,与畜禽粪便混合发酵,年产有机肥 2 万吨,不仅解决了固废处理问题,还开辟了农业合作新渠道


To enhance the resource value of solid waste, Jin Wanhong integrates intelligent sorting modules in the drying system. For example, when dealing with construction waste, the dried materials can be separated into metals, aggregates, and powders through processes such as magnetic separation and screening, which can be used for the production of recycled steel, concrete, and building materials. After adopting this technology, the resource recovery rate of a certain construction waste treatment plant has increased from 50% to 80%, and the annual processing capacity has exceeded 100000 tons.

For organic solid waste, such as food processing residues, organic fertilizers can be produced through biological fermentation after drying. A certain food enterprise dries fruit and vegetable scraps and mixes them with livestock and poultry manure for fermentation, producing 20000 tons of organic fertilizer annually. This not only solves the problem of solid waste treatment, but also opens up new channels for agricultural cooperation.
