【蒸汽列管回转干燥机】：低碳时代的 “节能先锋”，蒸汽驱动更环保

2025-08-14

引言：

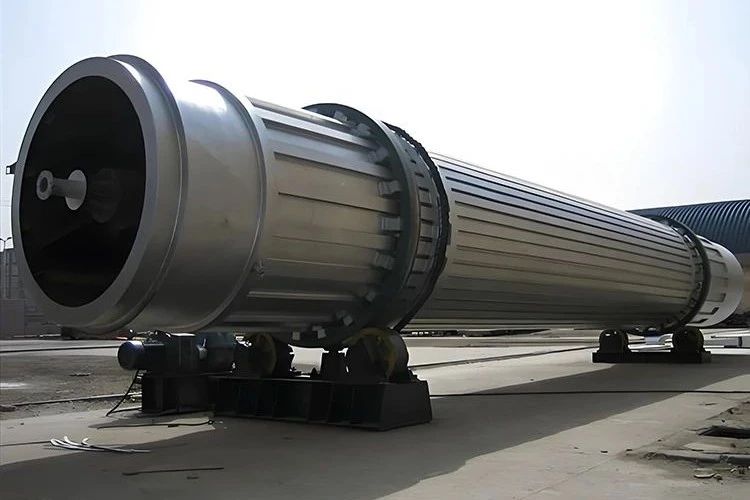

在全球低碳转型的大背景下，“降碳” 成为企业生产的必答题。金万泓蒸汽列管回转干燥机以 “蒸汽为热源” 的独特设计，成为高能耗行业的 “降碳利器”—— 它不依赖燃煤或燃气，而是利用工业余热蒸汽实现烘干，既降低能源成本，又减少碳排放。无论是造纸厂的纸浆干燥，还是化工厂的废渣处理，它都能以 “零污染、高效率” 的表现助力企业绿色转型。

In the context of global low-carbon transformation, "reducing carbon" has become a must answer question for enterprise production. The unique design of Jinwanhong steam tube rotary dryer with "steam as the heat source" has become a "carbon reduction tool" for high energy consuming industries - it does not rely on coal or gas, but uses industrial waste heat steam to achieve drying, which not only reduces energy costs but also reduces carbon emissions. Whether it is pulp drying in paper mills or waste disposal in chemical plants, it can assist enterprises in green transformation with the performance of "zero pollution and high efficiency".

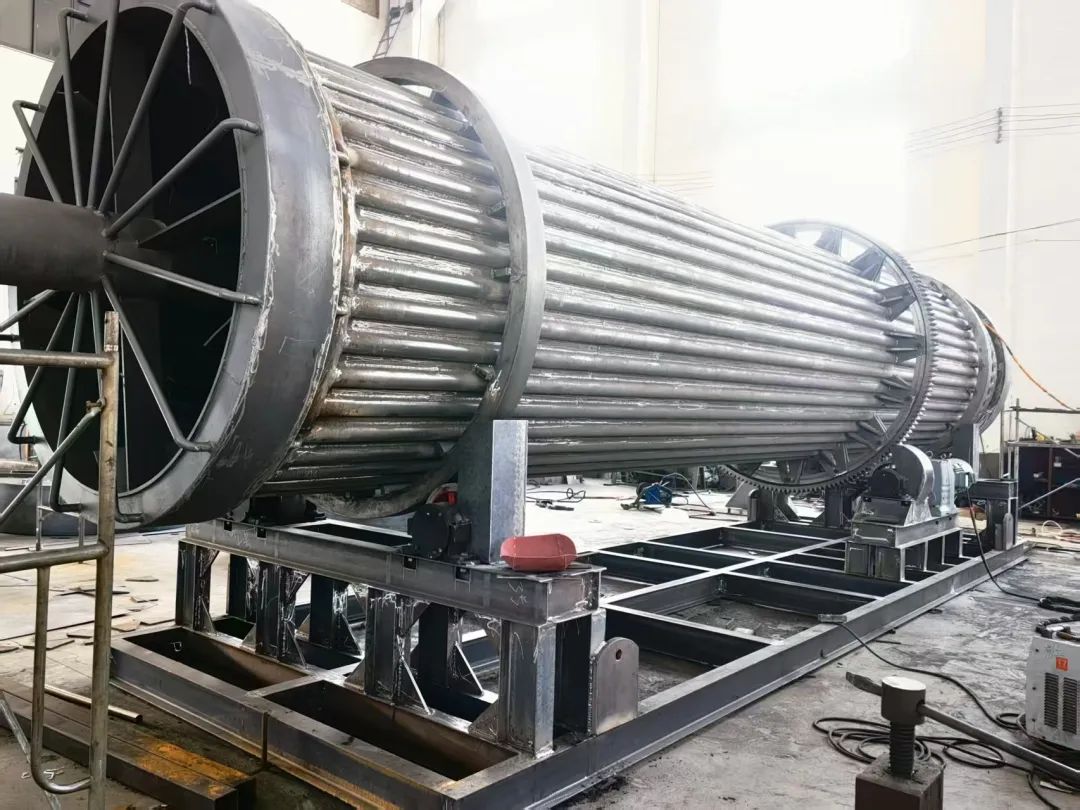

蒸汽列管回转干燥机的“心脏” 是密布的碳钢列管：数十根列管贯穿滚筒内部，工业余热蒸汽在列管内流动，通过管壁将热量传递给周围物料，冷凝水则回收至锅炉循环利用。这种 “间接加热” 方式热效率高达75%，比电加热设备节能60%，比燃煤热风炉节省30%成本。对有稳定蒸汽源的企业来说，它简直是 “变废为宝” 的节能神器。

The "heart" of the steam tube rotary dryer is densely packed with stainless steel tubes: dozens of tubes run through the inside of the drum, and industrial waste heat steam flows inside the tubes, transferring heat to surrounding materials through the tube walls, while condensed water is recovered and reused in the boiler. This "indirect heating" method has a thermal efficiency of up to 75%, which is 60% more energy-efficient than electric heating equipment and 30% more cost-effective than coal-fired hot air stoves. For enterprises with stable steam sources, it is simply an energy-saving tool for turning waste into treasure.

与燃煤、燃气设备不同，蒸汽列管烘干机全程无明火、无废气排放：物料在滚筒内与列管间接接触，不会产生粉尘或有害气体；列管外包裹的保温层避免热量外泄，筒体表面温度≤50℃，不造成热污染。这种“零排放”特性让设备轻松通过环保审批，特别适合对环保要求严苛的化工园区或食品加工厂。此外，设备可搭配生物质蒸汽锅炉使用，形成 “生物质制汽 - 蒸汽烘干 - 废渣还田” 的闭环，真正实现全链条低碳生产。

Unlike coal-fired and gas-fired equipment, steam tube dryers have no open flames or exhaust emissions throughout the process. The materials come into indirect contact with the tubes inside the drum and do not produce dust or harmful gases; The insulation layer wrapped outside the tube prevents heat leakage, and the surface temperature of the cylinder is ≤ 50 ℃, which does not cause thermal pollution. This' zero emission 'feature allows equipment to easily pass environmental approval, making it particularly suitable for chemical parks or food processing plants that have strict environmental requirements. In addition, the equipment can be used in conjunction with biomass steam boilers to form a closed loop of "biomass steam production steam drying waste residue returning to the field", truly achieving low-carbon production throughout the entire chain.

设备的智能化体现在“灵活适配” 上：通过调节蒸汽压力和滚筒转速，可处理从低湿度到高湿度的各类物料。处理颗粒物料时，则降低转速延长接触时间，确保烘干均匀。中控系统可实时显示蒸汽压力、物料终含水率等参数，支持与工厂 MES 系统对接，实现全流程自动化。这种“一机多用+智能调控”的特点，让设备能快速响应不同生产需求。

The intelligence of the equipment is reflected in its "flexible adaptation": by adjusting the steam pressure and drum speed, it can handle various materials from low humidity to high humidity. When handling granular materials, reduce the rotational speed to extend the contact time and ensure even drying. The central control system can display real-time parameters such as steam pressure and final moisture content of materials, and support integration with the factory MES system to achieve full process automation. The feature of "one machine for multiple uses+intelligent control" allows the equipment to quickly respond to different production needs.
